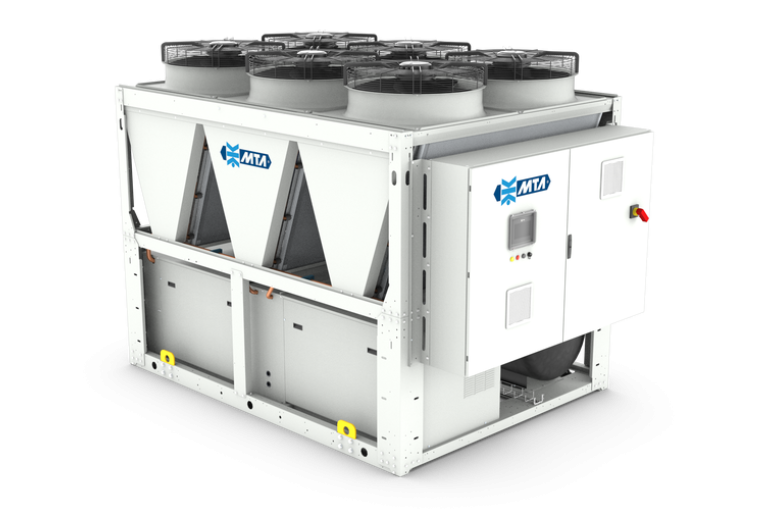

ARIES N ASN Air cooled chiller with R290
ARIES N ASN Air cooled chiller with R290
Air-cooled liquid chillers with scroll compressors and R290 refrigerant gas.
Nominal cooling capacity 165 – 240 kW
High Performance and Sustainability in One Versatile Solution
Designed to deliver unmatched energy efficiency across both Comfort and Process Cooling applications, this unit offers exceptional versatility thanks to its wide operating map, with leaving water temperatures ranging from -12 °C to +25 °C. Its all-in-one configuration—with optional integrated hydraulic kits and partial heat recovery—makes it a flexible solution for a broad range of needs. The optimized refrigeration circuit features scroll compressors in tandemXtrio configurations across two independent circuits, combined with micro-channel condenser coils and a brazed plate evaporator, ensuring top-level performance. Advanced control is provided by the latest Trane Symbio™ 800 adaptive controller, allowing precise and intelligent system management. Sustainability is at the core, with the use of R290 refrigerant—non-ozone-depleting and boasting an ultra-low Global Warming Potential (GWP).
—
The ARIES N ASCN series is available in three models, compact and with integrated components, covering cooling capacities from 165 to 240 kW. All configurations come with key hydraulic and mechanical elements already built into the unit, resulting in a space-saving footprint and streamlined installation.
Technical specifications
- Cooling capacity: 165-240 kW
- Eurovent certification: Yes
- ErP Certification: Yes
- Refrigerants: R290
- Operating mode: Cooling only
- Energy saving: Heat recovery
- Compressor: Scroll
