AMV9 Mini R32

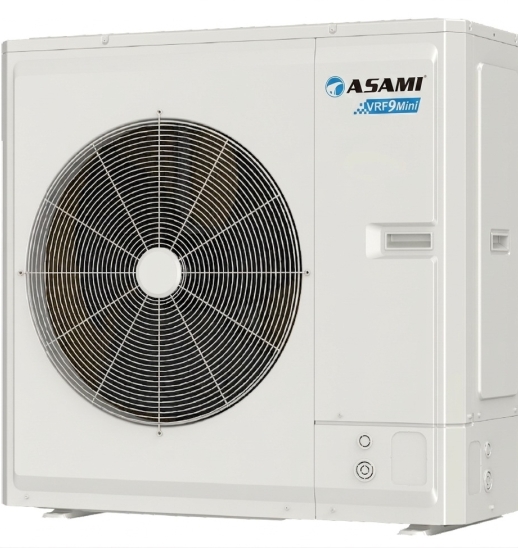

These are compact AMV9 MINI VRF outdoor units designed for small commercial and residential air-conditioning systems. Thanks to their single-fan design and compact dimensions, the units are especially suitable for installations where outdoor space is limited. The new-generation units use the more environmentally friendly R32 refrigerant, a DC inverter rotary compressor, while the Golden Fin heat exchanger protection provides improved corrosion resistance. The system also offers a wide operating temperature range, high energy efficiency and quieter operation.
- Compact single-fan outdoor unit, suitable for limited installation space;
- R32 refrigerant;
- Optional gas leak detectors and pipeline shut-off valves
- DC inverter rotary compressor;
- Golden Fin heat exchanger corrosion protection;
- Modbus and BACnet integration options;
- Silent operating mode;
- Heating from -20°C to +27°C;
- Cooling from -5°C to +55°C;
- Cooling capacity from 12.1 kW to 15.5 kW, heating capacity from 14 kW to 17.5 kW;
- Up to 7–9 indoor units can be connected to one outdoor unit;
- Maximum total piping length: 120 m;
- Maximum piping length to the farthest indoor unit: 60 m;
- Maximum piping length after the first branch: 30 m.
Technical Features
- High energy efficiency: AMV9 MINI series units are designed to ensure a comfortable indoor climate while consuming less electricity. Depending on the model, SEER reaches up to 8.0 and SCOP up to 4.9, making the system suitable for energy-efficient commercial and residential applications.
- DC inverter rotary compressor: all models use a Rotary DC Inverter compressor, allowing smooth capacity adjustment according to the actual system demand while maintaining stable and efficient operation.
- Quieter operation: the new support structure reduces low-frequency compressor hum during prolonged low-frequency operation, helping the outdoor unit operate more quietly and comfortably. Depending on the model, the sound pressure level is approximately 57–60 dB(A).
- Golden Fin protection: the Golden Fin coating used on aluminium heat exchangers provides high corrosion resistance, helps maintain heat exchanger efficiency and extends the service life of the equipment.
- Compact design and easier installation: the single-fan design is suitable for locations where installation space is limited. All models have approximate dimensions of 990 × 955 × 370 mm and a net weight of 79.5 kg, making the unit easier to transport, install and maintain.
- Integration options: the AMV9 MINI series supports Modbus and BACnet, allowing easier integration into building management systems.
- R32 refrigerant safety: due to the flammability of R32 refrigerant, the room area and the total refrigerant charge of the system must be evaluated during system design. Gas leak detectors must be installed if the room is too small in relation to the total refrigerant charge of the system. If the room area is large enough to safely accommodate the entire refrigerant charge, the detectors may be omitted. The exact requirements for each project must be determined according to the installation manual.
